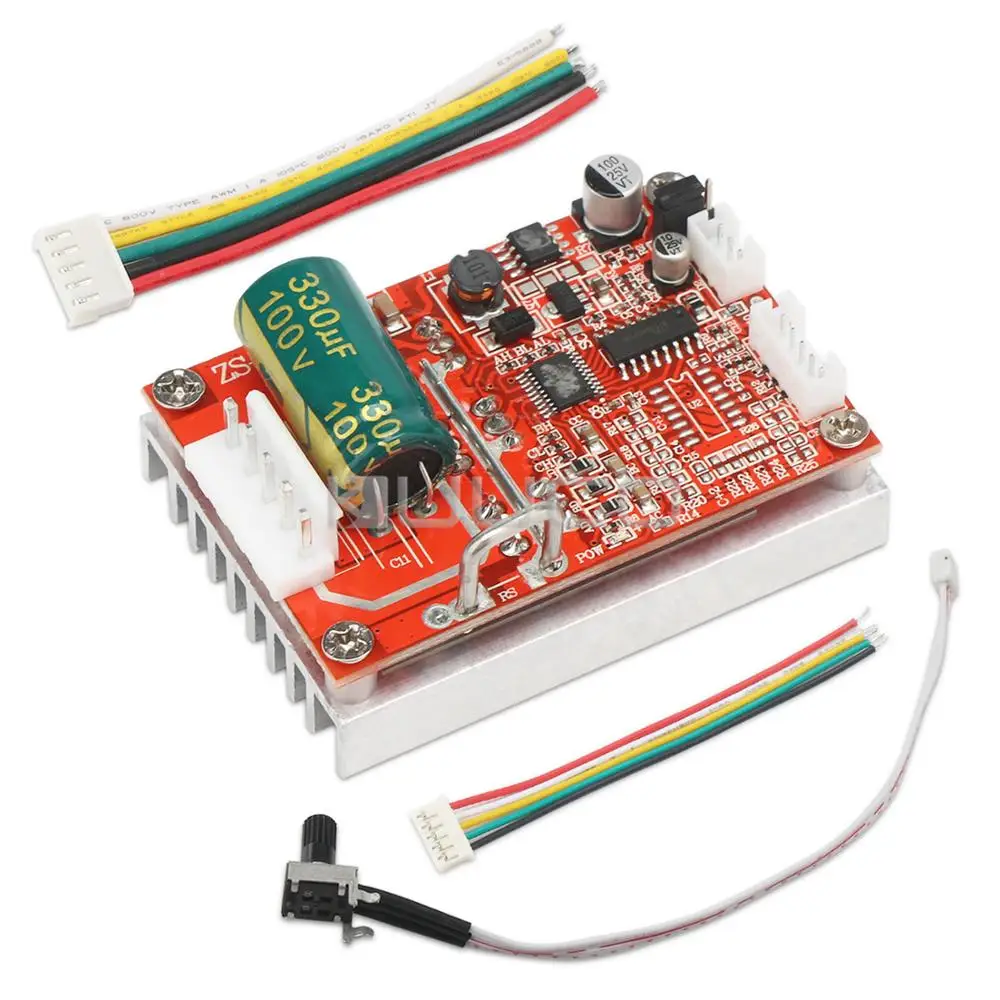

Brushless Sensored Motor Control Board Motor Driver Regulator Controller DC 5~36V 16A 350W BLDC Motor Controller/Control Switch
- Working voltage: DC 5~36V
- Max. current: 16A
- Max. power: 350W
- Over-current protection: Yes
- Dimensions: 63 x 45 x 28mm
- Weight: about 93g
- MA MB MC: phase line output connects electric motor
- 5V GND: 5V power supply(current not excess 30MA)
- VCC GND: connects DC power supply cable
- SC: Speed pulse signal output
- Z/F: Forward and reverse control lines—Connects 5V or GND to achieve forward and reverse control.
- VR: Speed signal input—Generally, VR connects external 100K three-pin potentiometer’s middle pin, the rest two pins connect the 5V and GND.
- Ha Hb Hc +5V GND: Hall signal input— Generally, the motor with Hall has corresponding 5 wires.
